Pitkä pinna...Slowly but surely !!

Muutaman kuukauden aherruksen jälkeen olemme saaneet avotilan melkein valmiiksi ja kattopalkkejakin on jo paikalla.

Peräsinpinna on tehty tammesta ja kuten tässä projektissa on tapana niin siitäkin tuli iso...
--------------------------------------------------------------------------------------------------------------------------

After a couple months of labor we have now almost done with the cockpit. Beams for the cabin tops are made and almost all installed.

The bulkheads are taking shape and we made had the tiller arm made. The tiller arm is made out of oak and it is long and large as it should be on a "bigboat"


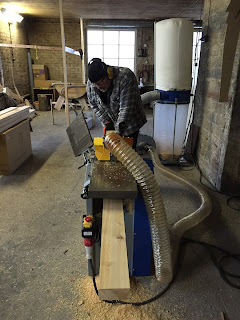

Avotilan rakenne oli aikamoista lovetus- / puusepäntyötä, mutta hieno siitä tuli...

The support beams and the structure for the cockpit was a real exercise of joinery skills but it turned out very nice and solid.






Tässä näkyy tankkien ja moottorin sijainnit. Isompi tankki on vesi- ja pienempi on septitankki. Moottori mahtuu mainiosti lattian alle.

This shows the location of the tanks. The larger one is the fresh water tank and the smaller one is the septic tank. The motor fits well and clear under the cockpit sole.


Näkymä hytistä taaksepäin. Oviaukko ja kattoprofiili on paikallaan.

Here is a view from inside the cabin facing aft. The doorway is in place and the temp.beam for the cabintop shows the roofline.







Lattialuukut tehtiin siten että tankit on helppo tarkistaa ja moottoriin pääsee hyvin käsiksi. Koko lattian voi nostaa helposti osissa pois.

The cokcpit sole is made out several hatches all of which can be taken out for future service. The tanks and motor remain easily accessible.





Ankkurilaatikon seinä tehtiin ja keulan avotila alkaa muodostua...Mittasimme penkkien ja rakenteiden paikat laserilla.

The bulkhead for the lazarette for the anchor and its chain was built and the cockpit up in the bow of the boat was measuread and marked on the frames.


Hytin seinä alkaa muodostua. Materiaallina on siperian lehtikuusesta tehtyä ponttipanelia.

The bulkhead for the main cabin is taking shape. It is made out of Larix with a tonque and groove joint.




Avotilan penkin säilytyslaatikko.

The lazarette / fender storage under the seat.




Oviaukko takahyttiin on valmis. Näihin säiltyslaatikoihin tulee moottorin ohjausyksikkö ja webaston tankki.

The doorway in to the aft cabin / head is ready. The lockers will house the main controller unit for the motor and the diesel tank for the Webasto heater unit.


Peräsinpinna paikallaan ja näyttää jo aika hyvältä...

With the tiller arm in place you can almost feel the ocean...


Webaston ilmaputki

The air duct for the Webasto heater.

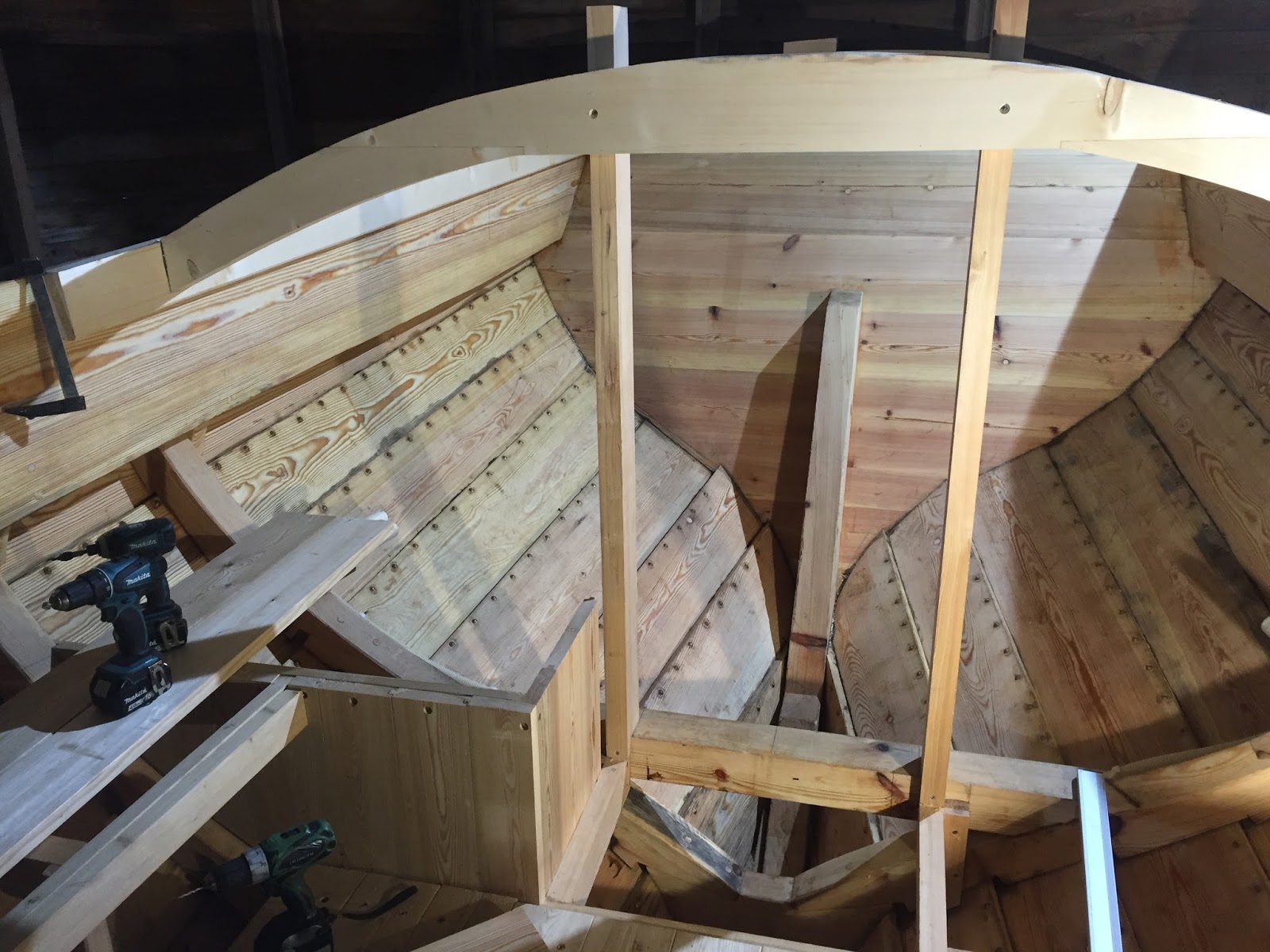

Yli puolet kattokaarista on paikallaan...Hytin koko alkaa hahmottumaan. Sähköputketkin on vedetty jo paikalleen.

With more than half of the cabintob beams in place one is getting the feel for the space inside the main cabin. The cable trays / tubes are in place.


Vielä hiukan hommaa, niin hytti on valmis...

Just a little work and the cabin is ready :)
